Fujifim Revoria EC1100

Fujifim Revoria EC1100

Versatile media handling for a wide range of applications with faster printing and minimal downtime to help expand your business.

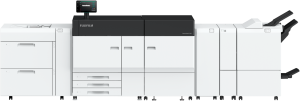

Fujifilm Revoria Press EC1100

Revoria Press EC1100 optimally supports a wide range of applications and creative finishing versatility, delivering quality image resolution at faster printing speeds, producing improved picture vibrancy, smooth gradation, and sharper text.

In addition to its attractive finishing features, the printer is also able to handle long paper and heavyweight paper.

Applications:

  • Envelope
  • Heavyweight (400 gsm)
  • Long paper (864 mm) 2 sided
  • Full Bleed Trim
  • Ticket
  • Postcard
  • Business Card
  • Long Paper (1,200 mm)

Note: Samples in this catalog include those that require separate finishing.

Key Features:

  • Limitless Productivity and Versatility
  • “Air suction feeder” with high media handling capabilities
  • Supports Long Paper of Maximum 1,200 mm
  • Handles Various Media Weight from 52 gsm to 400 gsm
  • Wide Variety of Finishing Options
  • Selectable Print Server Fiery EC11 and Fiery EC12
  • High Image Quality, Automatic Processing Technology, Reliable System Maximising Uptime
  • Automation with Inline Sensor
  • Optimize print conditions for each paper type
  • Auto Sheet Clearing After Paper Jam
  • Easy Rectification During Jams

Supported Technologies:

  1. Control Panel
  2. VCSEL-ROS / EA-Eco toner*6
  3. Air Suction Mechanism / Multifeed Detection Device
  4. Gate-Type Registration Mechanism
  5. Compact Belt Roll Fuser
  6. Built-in Twin Decurler
  7. Compact Paper Cooling Device
  8. Inline Sensor
  9. Real Time Curl Correction

Specifications

Item Description
Type Console
Colour Capability Full Colour
Printing Resolution 2,400 x 2,400 dpi
Continuous Print Speed*1 A4 100 ppm
A3 52 ppm
Paper Size*2 Tray 1, 2, 3 Standard size: Max A3, 11 x 17”, Min A5
Custom size: 140 x 182 mm to 330 x 488 mm
Bypass Tray (Tray 5)*3 Standard size: Max A3, 11 x 17”, Min A6
Custom size: 98 x 148 mm to 330 x 660 mm
Paper Weight Tray 1, 2, 3 64 to 256 gsm
Bypass Tray (Tray 5)*3 52 to 300 gsm*4
Paper Tray Capacity*5 Standard 550 sheets x 3-tray
Optional [High Capacity Feeder C3-DS + Multi Sheet Inserter for Banner Print] 2,000 sheets x 2-tray + 250 sheets
[2nd High Capacity Feeder C1-DS + High Capacity Feeder C3-DS+ Multi Sheet Inserter for Banner Print]
2,000 sheets x 2-tray x 2-connection + 250 sheets [Air Suction Feeder C1-DS*6]
2,100 sheets x 2-tray + 250 sheets
[Air Suction Feeder C1-DSXL*6 + Banner Unit for Air Suction Feeder C1-DSXL]
800 sheets*7 + 2,100 sheets + 250 sheets
[Chained Air Suction Feeder C1-DS-R + Chained Air Suction Feeder C1-DS-L*6]
2,100 sheets x 2-tray x 2-connection + 250 sheets
[Chained Air Suction Feeder C1-DS-R + Chained Air Suction Feeder C1-DSXL-L*6 + Banner Unit for Air Suction Feeder C1-DSXL]
2,100 sheets x 2-tray + 800 sheets*7 + 2,100 sheets + 250 sheets
Max 10,300 sheets (Standard + Chained Air Suction Feeder C1-DS-R + Chained Air Suction Feeder C1-DS-L)
Output Tray Capacity*5*8 500 sheets(A3)
Power Supply AC200-240 V +/- 10 %, 24 A, 50/60 Hz
Maximum Power Consumption 5.76 kW
Dimensions*9 W 2,671 x D 834 x H 1,370 mm
Weight*9 727 kg

Note: Multi Sheet Inserter for Banner Print cannot be directly connected to the main unit. It is used by connecting to High Capacity Feeder C3-DS. *1: When continuously printing a single document. 52 to 300 gsm, uncoated paper. Print speed may be reduced depending on conditions of output data, on whether auto image quality adjustment is performed, on whether the job includes a mixture of paper sizes and types, and other reasons. *2: Image loss width: Lead edge 4.0 mm, Trail edge 2.0 mm, Front 2.0 mm, Rear 2.0 mm. *3: Bypass Tray is Multi Sheet Inserter for Banner Print. *4: Banner Printing 52 to 220 gsm. *5: 90 gsm paper. *6: Multi Sheet Inserter for Banner Print is included. *7: 100 sheets for paper longer than 864 mm (90 gsm). *8: Offset Catch Tray. *9: Includes main unit and High Capacity Feeder C3-DS. Excludes output tray and external print server.
