Mimaki DTF TXF 150-75 – Heat Transfer Inkjet Printer

Mimaki DTF TXF 150-75 – Heat Transfer Inkjet Printer

Sustainable Fabric Pritning Solution – A safe and stable machine packed with Mimaki’s technology.

TxF150-75″ is a Mimaki’s first DTF (direct-to-film) printer with a maximum printing width of 80 cm for producing DTF print transfer sheets. “PHT50” heat transfer pigment ink for DTF, consisting of five colors (CMYK and white), has acquired the ECO PASSPORT certification which is essential for obtaining the international safety standard for textile products “OEKO-TEX®”

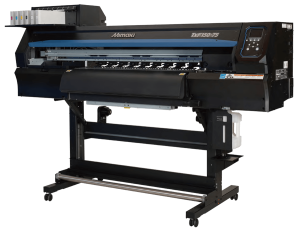

Mimaki TxF150-75 DTF Printer

The DTF printers have been plagued by ink ejection defects and white ink clogging. To overcome these issues, Mimaki has adopted a degassing ink design that uses aluminum packs as the printer’s ink packaging form, as well as a white ink circulation function MCT (Mimaki Circulation Technology)*1. The new printer also features Mimaki’s NCU (Nozzle Check Unit)*2 and NRS (Nozzle Recovery System)*3 technologies that support stable operation. They ensure continuous printing without stopping the operation to support customers’ productions.

*1 Mimaki Circulation Technology: White ink circulation function
*2 Nozzle Check Unit: Missing nozzle detection function
*3 Nozzle Recovery System: A function to substitute missing nozzles with other nozzles.

Key Features

  • Mimaki’s core technologies for stable operation
  • Secured safety – Mimaki genuine Heat transfer pigment ink PHT50*
  • Secured safety Mimaki Brand
  • Comparison of silk screen, heat transfer rubber sheet, DTG, and DTF methods.
  • Example of uses-Enable to decorate various fabrics by one DTF print system

Specifications

Item TxF150-75
Print Head On-demand piezo head
Print resolution 720dpi, 1,440dpi
Ink Type / Color Heat transfer pigment ink PHT50(C, M, Y, K, W)
Capacity 600ml Ink pack(500ml only for white)
Circulatory function Only white
Maximum drawing width 800mm
Media Maximum width 810mm
Thickness 1.0mm or less
Roll weight 45kg(99lb) or less
Interface Ethernet 1000BASE-T、USB2.0 Hi-speed
Power Body: Single-phase AC100-120V/AC200-240V±10%,50/60 Hz±1Hz×1
Power consumption AC100V: 0.9kW or less AC200V: 1.2kW or less
Certifications VCCI class A, FCC class A, ETL IEC 62368-1,CE Marking(EMC, Low voltage, Machinery directive, and RoHS),CB, REACH, Energy Star, RCM, KC
Dimensions(W×D×H) 1,965mm × 700mm × 1,392mm(77 × 27 × 39 in)
Weight 126kg
